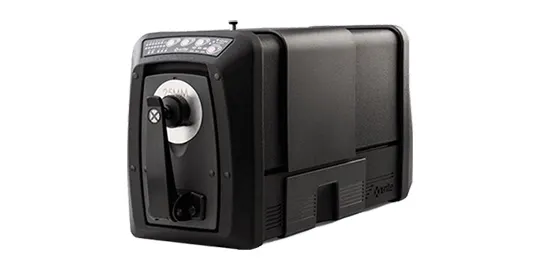

Ci7860精密色差仪
Ci7860台式分光测色仪为行业树立了高精确度的数字色彩标准,可与整个供应链中的供应商更好地沟通交流色彩规格。该款台式精密色差仪可广泛应用于纸张、纺织物、塑料和颜料、汽车、屏幕色彩校正等工业领域。
先进的分光测色仪器,满足严苛的色彩容差
色彩对于保证品牌完整性方面起到非常重要的作用。无论终产品是汽车、服饰还是儿童玩具,一旦其摆上货架或进入展厅,色彩的精确度和一致性就至关重要。爱色丽台式精密色差仪能为供应商提供精确的数字色彩规格,帮助他们减少代价高昂的误差和返工,并加快产品上市的时间。
一般生产工作过程中隐藏了许多产生色差的机会:原料的组成和产品生产的环境条件是色差根源之一,颜色测量程序的差异是另一个色差来源,各种测色设备读取颜色样本的准确性和一致性较差也会导致色差。台式精密色差仪Ci7860旨在尽量减少生产各环节仪器台间差造成的色差,确保对颜色准确、一致的高度控制。
Ci7860精密色差仪的平均仪器台间差为0.06 Delta E*ab,这意味着相比其他积分球式分光测色仪,该分光测色仪性能提高了25%*。因此,Ci7860分光测色仪使品牌能创建高度精确的色母标准,以数字方式取代实物样品与供应链合作伙伴交流这些标准。供应商可使用 Ci7860或Ci7x00系列的其他精密色差仪、进口色差仪来验证样本和终产品是否达到客户严苛的色彩容差。
优点:
· 作为一款精密色差仪(进口色差仪),Ci7860分光测色仪拥有完整的数字标签及内部湿度和温度传感器,确保对所有测量进行准确跟踪和追溯。
· 该分光测色仪兼容历史数据格式,无缝融入现有的操作环境。
· 经过校准的UV切除选项,使Ci7860精密色差仪、进口色差仪能帮助测量和控制用于纸张、纺织物、塑料和颜料与涂层上的荧光增白剂。
· 四种孔径尺寸,加上一个可选的3.5mm孔径用于对不透明、透明和半透明材料进行反射和透射测量。
· 可帮助品控人员在石油化工产品颜色测量中,测量常用颜色参数L*a*b*值、黄度、白度,还支持测量特定的液体色度指数,例如:APHA(铂钴,参见标准ASTM D1209)、Gardner(铁钴,参见标准ASTM D6166)、Saybolt色度(参见标准ASTM D156)、ASTM色度(参见标准ASTM D1500)等。
校准 |
白板、黑筒、UV |
通信接口 |
USB 2.0 |
尺寸(长、宽、高) |
56cm, 22cm, 31cm |
嵌入式NetProfiler支持 |
有 |
湿度 |
5% 到 85%,不冷凝 |
光斑尺寸 |
25mm, 17mm, 10mm, 6mm, 3.5mm |
仪器台间差 |
0.06 ΔE*ab avg. |
内部温度和湿度传感器 |
有 |
灯具寿命 |
≥1,000,000次测量 |
灯具计时器 |
有 |
激光透射目标定位 |
有 |
光源 |
脉冲氙,D65已校准 |
测量循环时间 |
≈ 2.5秒 |
测量结构 |
d/8° |
测量光点 |
19mm, 10mm, 5mm, 2.5mm |
测量时间 |
≈ 2.5秒 |
NetProfiler支持 |
嵌入式 |
工作温度范围 |
5°C 到40°C |
包装尺寸(长、宽、高) |
71cm, 38cm, 53cm |
光度测定范围 |
0到200% |
光度测定分辨率 |
0.001% |
反射孔径 |
4 标准 / 1 可选 |
样本预览 |
色样门和视频 |
服务指示灯 |
状态面板 |
装运重量 |
25kg |
短期可重复性 – 白色 |
.01 ΔE*ab RMS 在白色瓷砖上 |
软件开发包 |
XDS4 |
光谱分析仪 |
2D CCD 阵列全息光栅 |
光谱间隔 |
10 nm (默认); 5nm; 20nm |
光谱范围 |
360-780 nm |
光谱报告 |
10 nm (默认); 5nm; 20nm |
状态面板 |
有 |
存储温度范围 |
-20° 到 50°C |
支持数据转换 |
嵌入式 |
透射孔径 |
4 |
电压 |
100 到 240 VAC / 50到60Hz |
预热时间 |
无 |
保修期 |
12个月 |
重量 |
20.5kg |
包含些什么? |
仪器带白色校准标准板、黑筒、绿色标准板、UV校准标准板、孔径板、 操作手册(CD)、交流电适配器、USB电缆 |
|
